Horse Skeleton

Untitled Slide

Untitled Slide

HORSE SKELETON

Untitled Slide

Untitled Slide

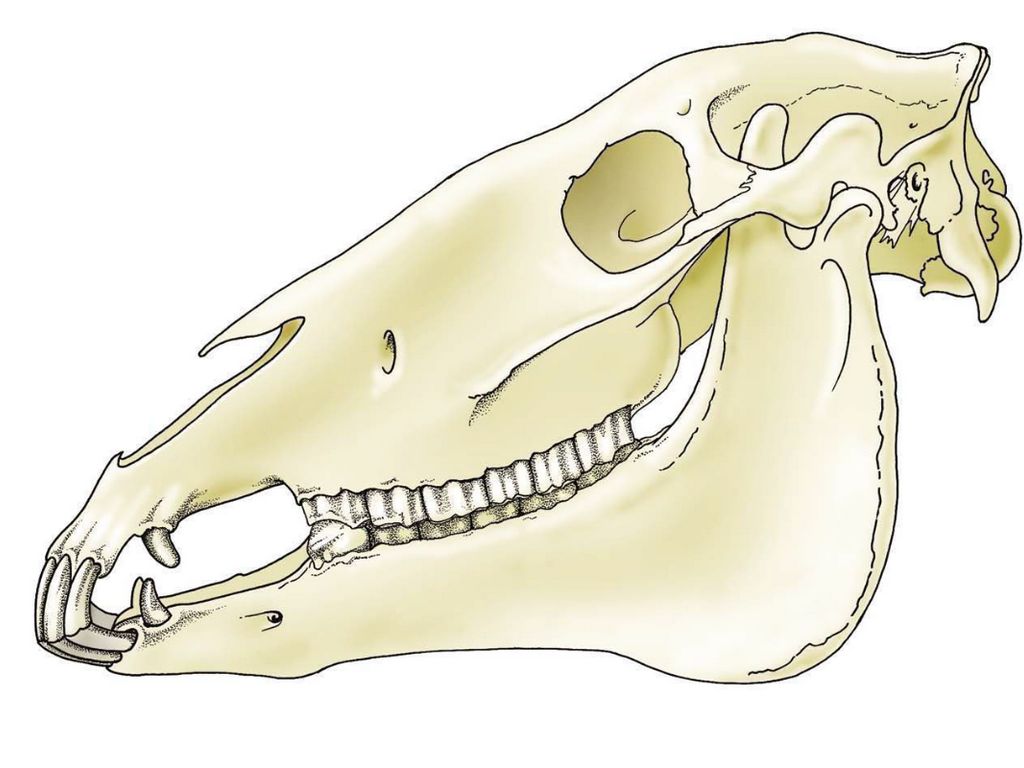

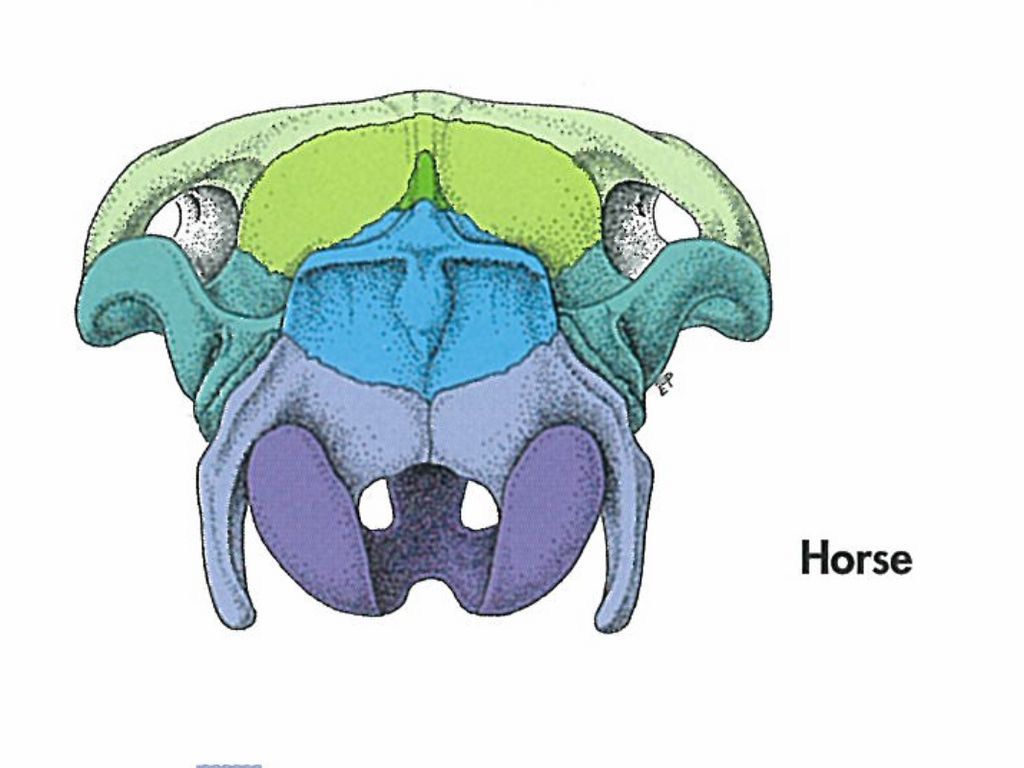

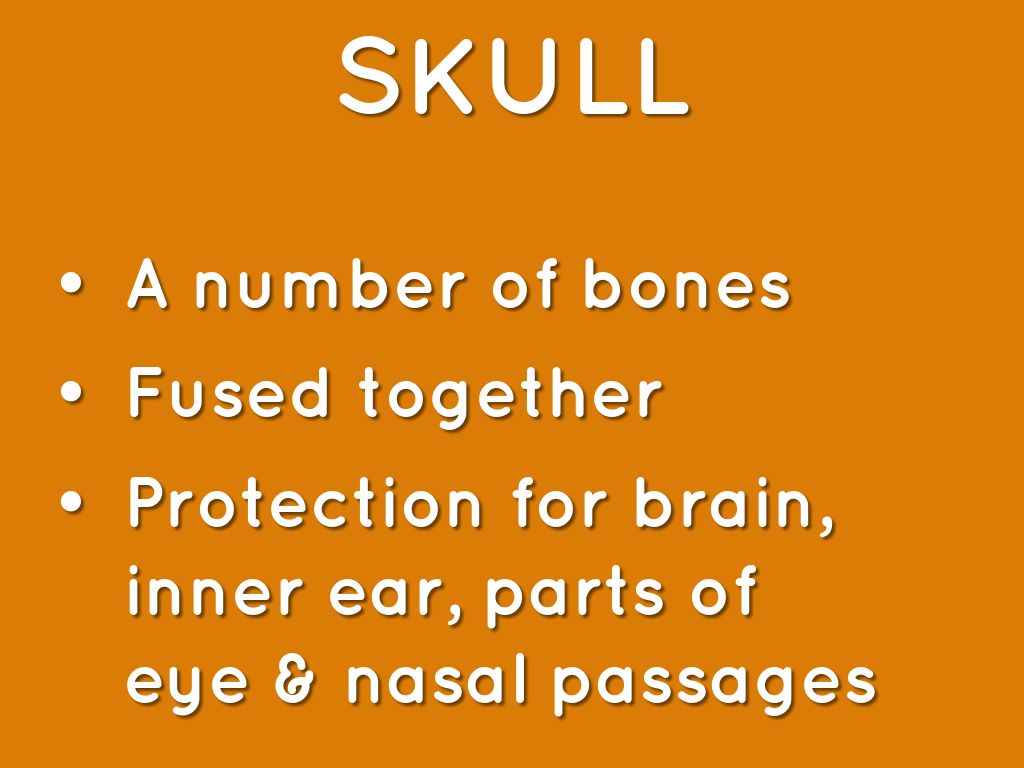

SKULL

• A number of bones
• Fused together
• Protection for brain, inner ear, parts of eye & nasal passages

Untitled Slide

Untitled Slide

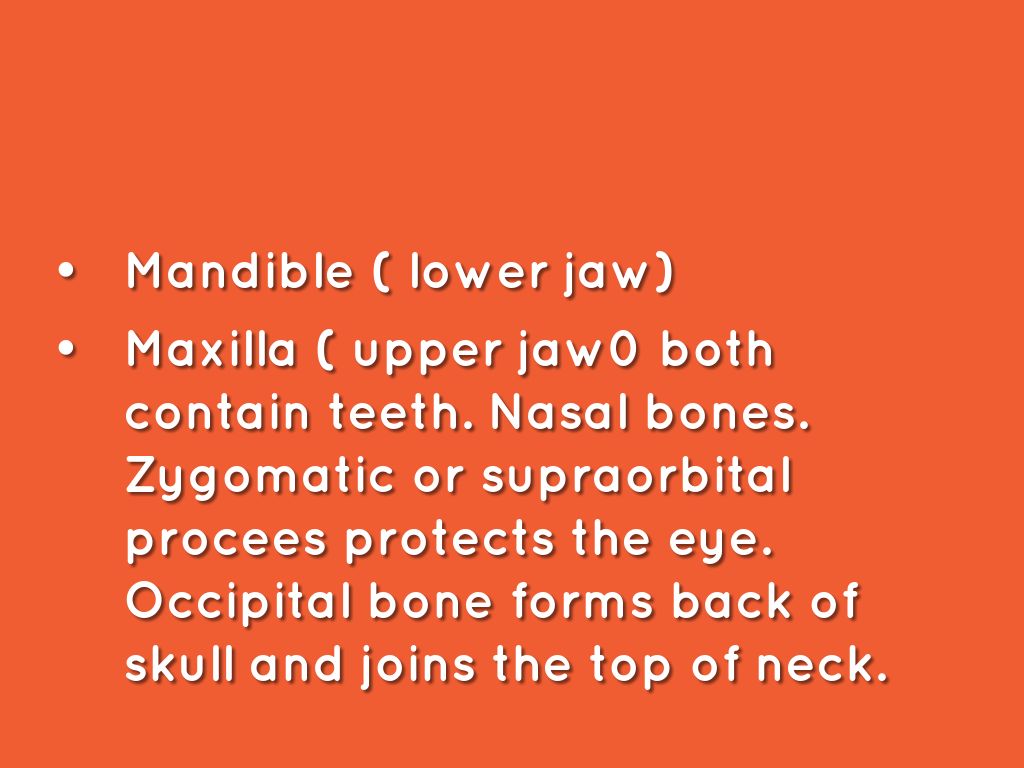

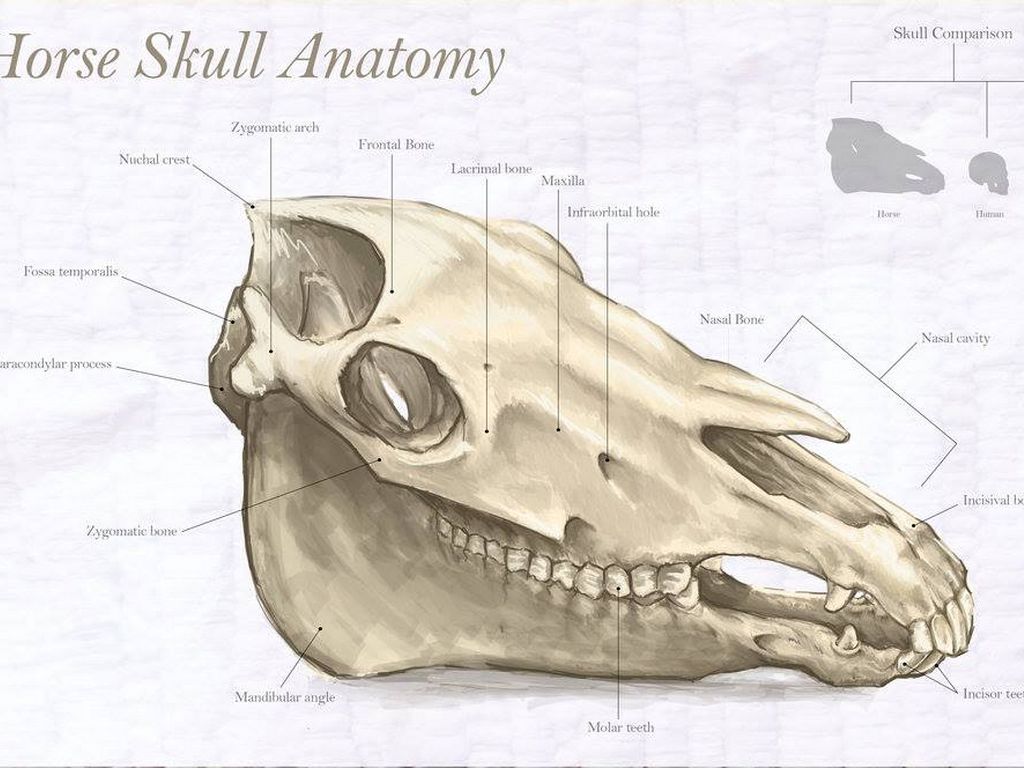

• Mandible ( lower jaw)
• Maxilla ( upper jaw0 both contain teeth. Nasal bones. Zygomatic or supraorbital procees protects the eye. Occipital bone forms back of skull and joins the top of neck.

Untitled Slide

Untitled Slide

Untitled Slide

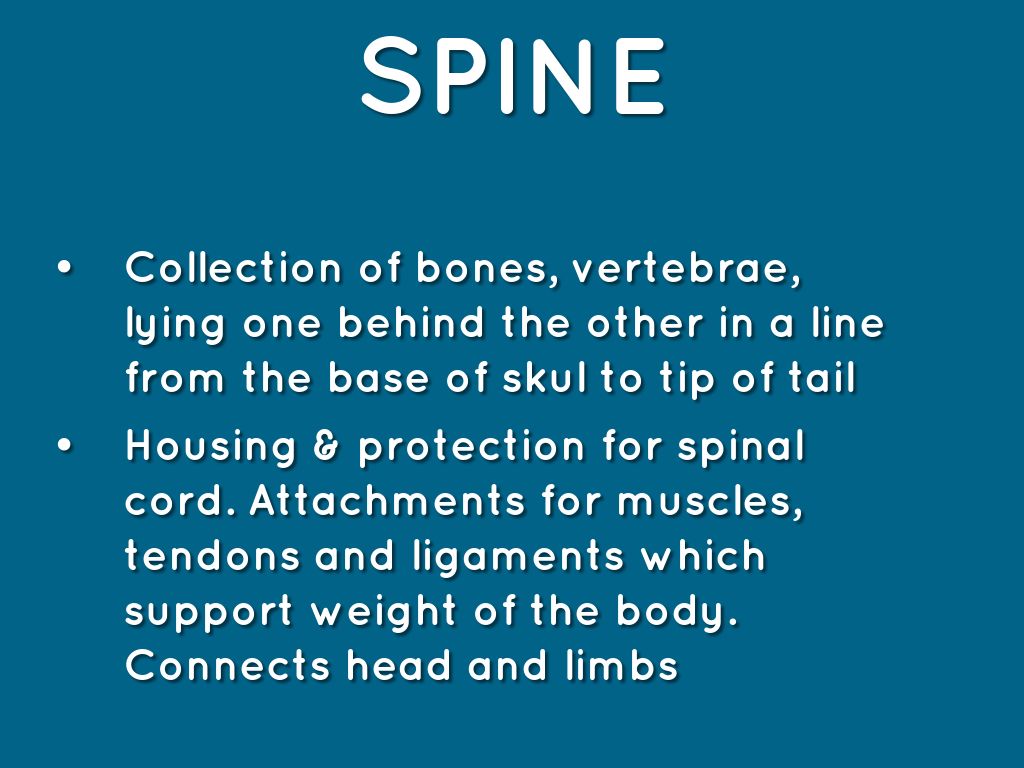

SPINE

• Collection of bones, vertebrae, lying one behind the other in a line from the base of skul to tip of tail
• Housing & protection for spinal cord. Attachments for muscles, tendons and ligaments which support weight of the body. Connects head and limbs

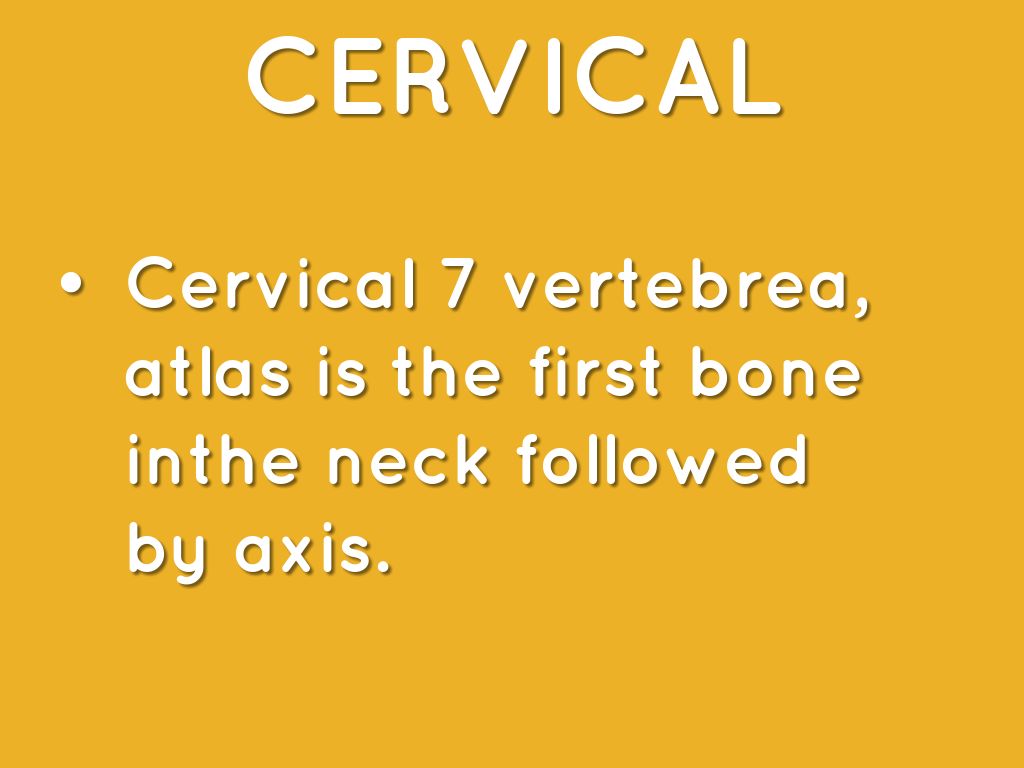

CERVICAL

• Cervical 7 vertebrea, atlas is the first bone inthe neck followed by axis.

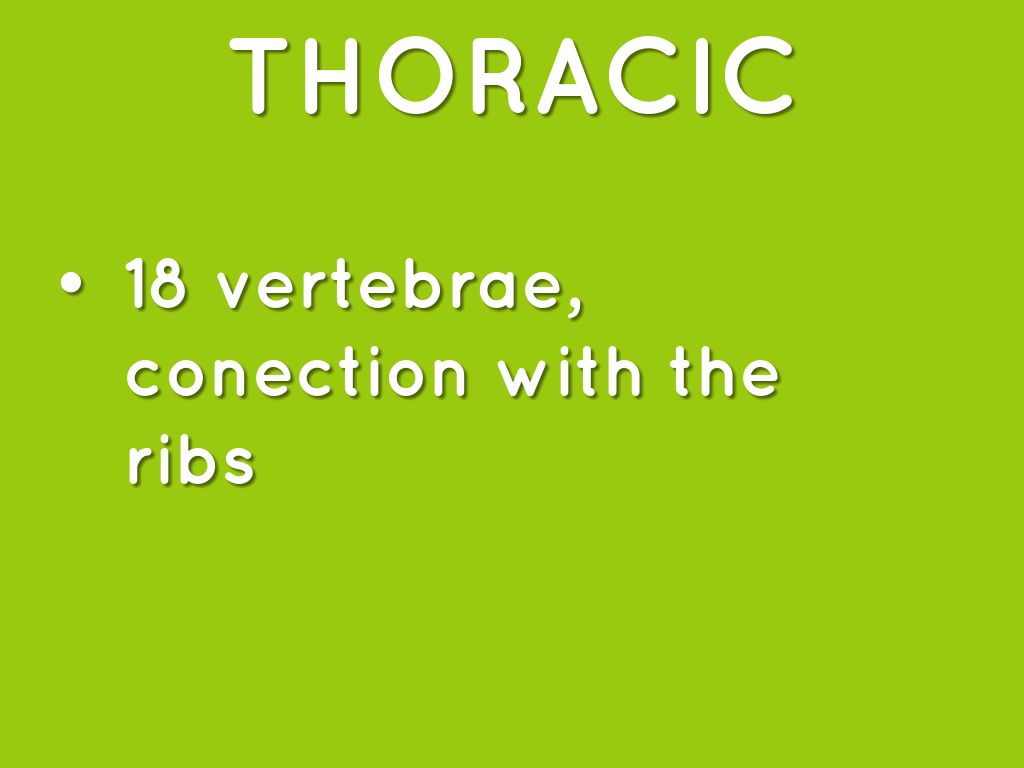

THORACIC

• 18 vertebrae, conection with the ribs

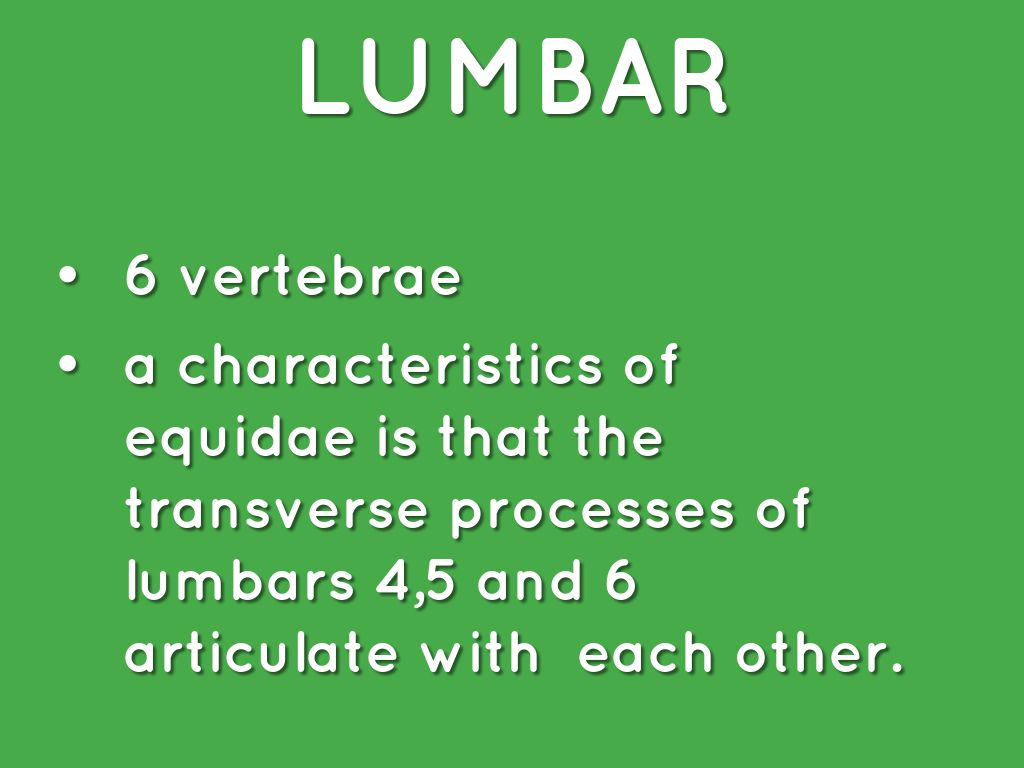

LUMBAR

• 6 vertebrae
• a characteristics of equidae is that the transverse processes of lumbars 4,5 and 6 articulate with each other.

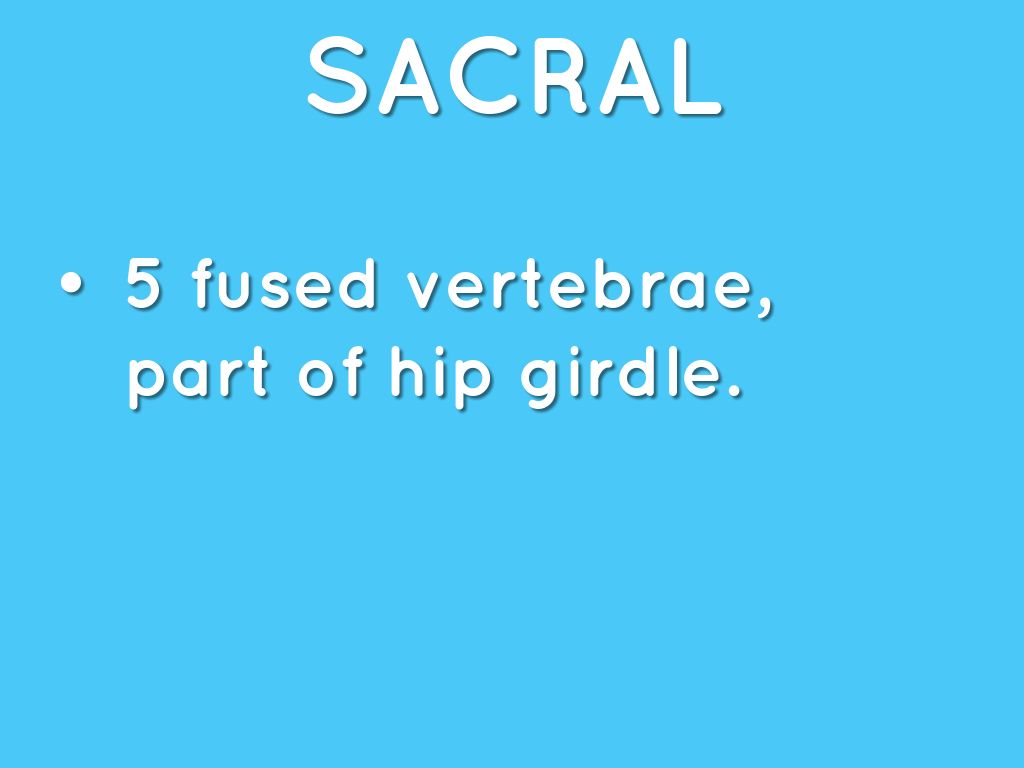

SACRAL

• 5 fused vertebrae, part of hip girdle.

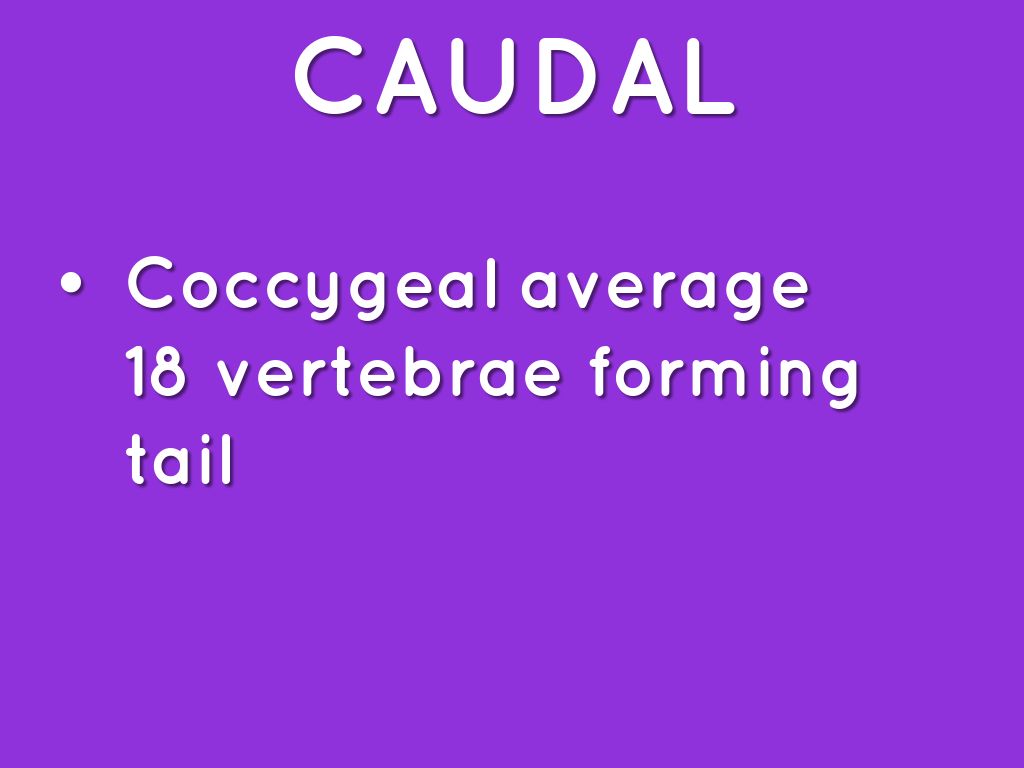

CAUDAL

• Coccygeal average 18 vertebrae forming tail

Untitled Slide

• In the fowl the vertebrae of the lumbo-sacral region are fused into bony mass comprising the last thoracic, fourteen lumbo-sacral and the coccygeal vertebrae.

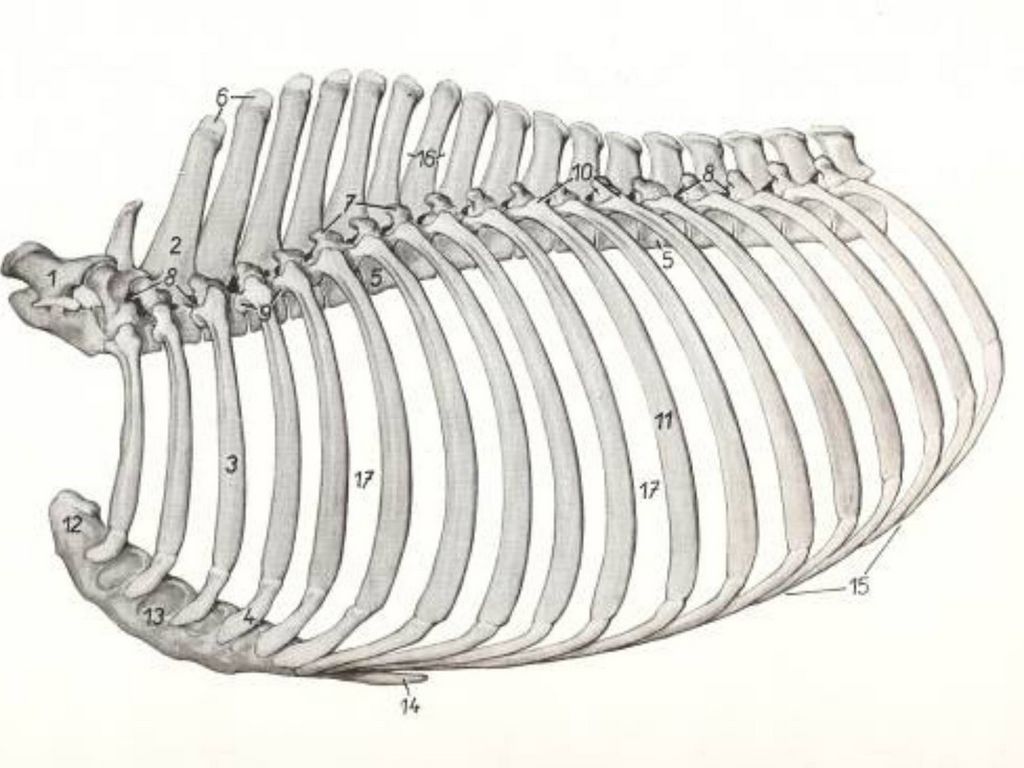

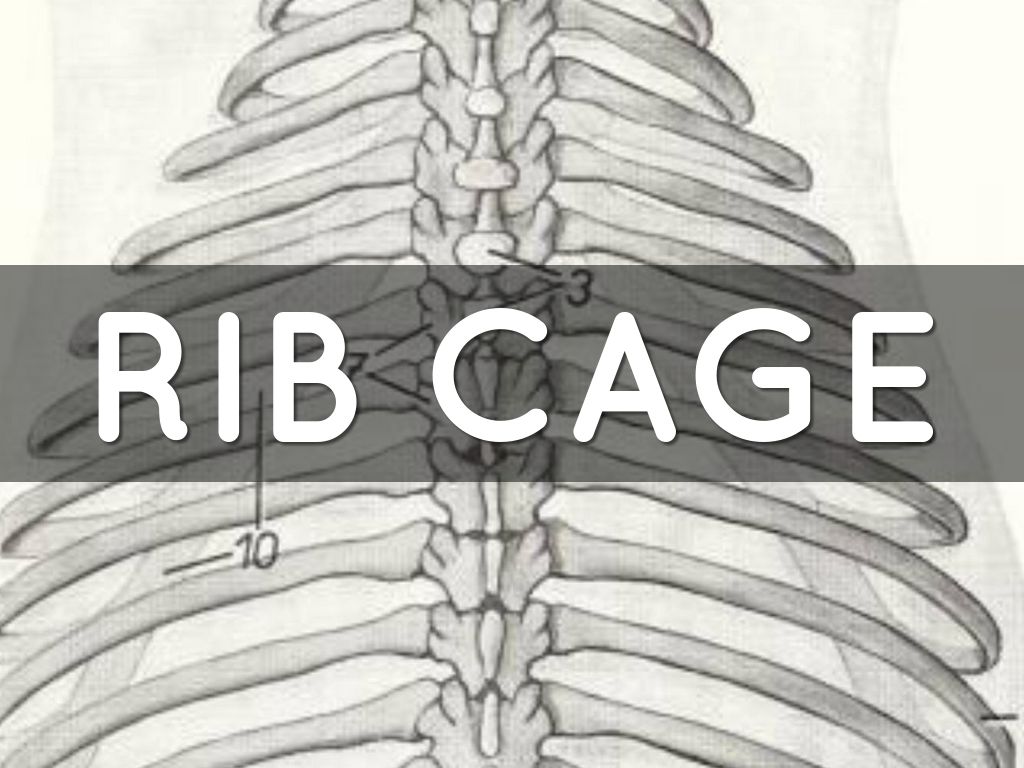

RIB CAGE

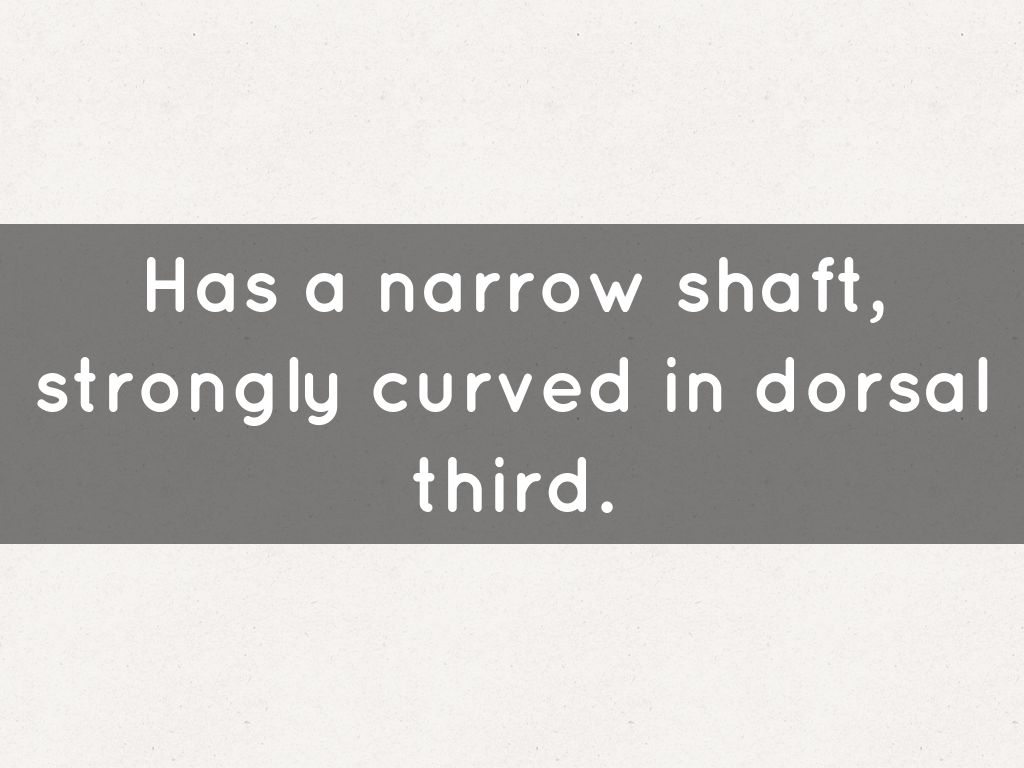

Has a narrow shaft, strongly curved in dorsal third.

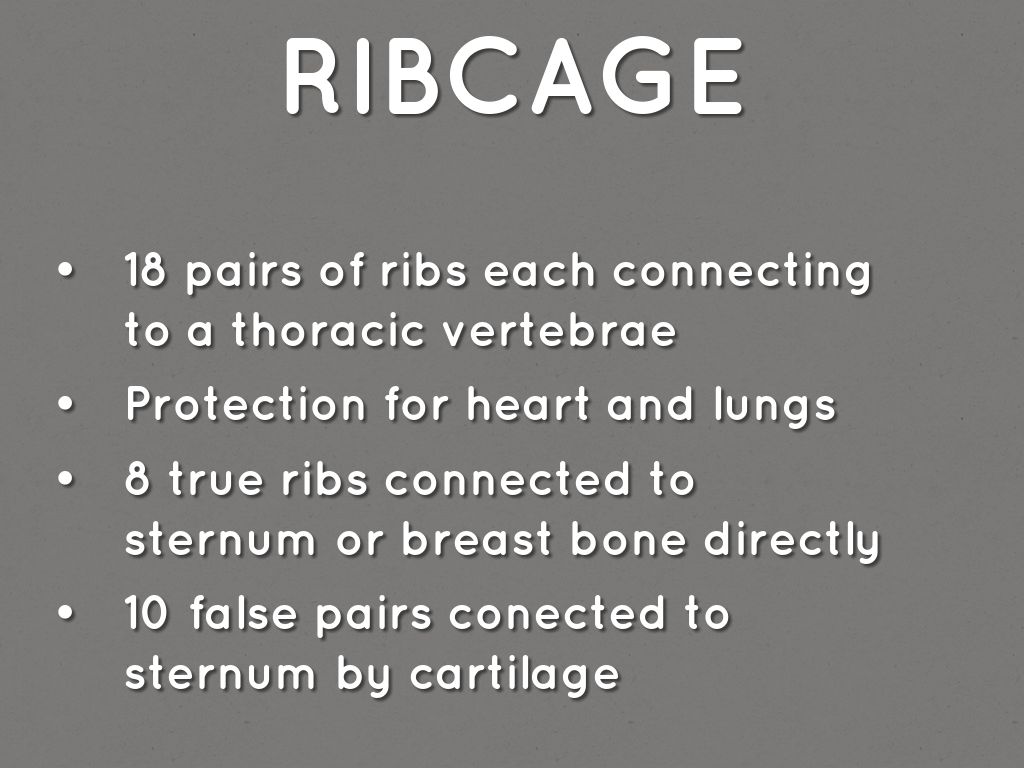

RIBCAGE

• 18 pairs of ribs each connecting to a thoracic vertebrae
• Protection for heart and lungs
• 8 true ribs connected to sternum or breast bone directly
• 10 false pairs conected to sternum by cartilage

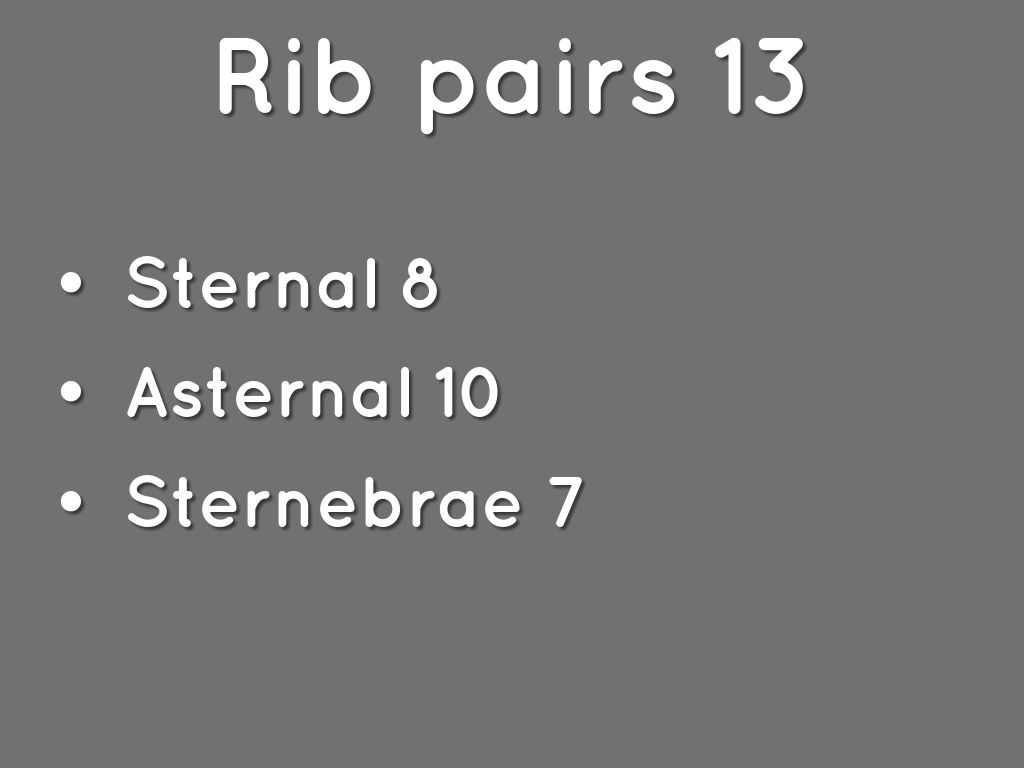

Rib pairs 13

• Sternal 8
• Asternal 10
• Sternebrae 7

Untitled Slide

Untitled Slide

Untitled Slide

Untitled Slide
