introtolathe

Published on Apr 09, 2020

No Description

PRESENTATION OUTLINE

Untitled Slide

Photo by Avius Quovis

Untitled Slide

PPE and Safety glasses must be worn at all times in the LAB/SHOP.
Photo by Adam Birkett

Untitled Slide

Always keep your sleeves rolled up, jewelry removed, and hair tied back.

Untitled Slide

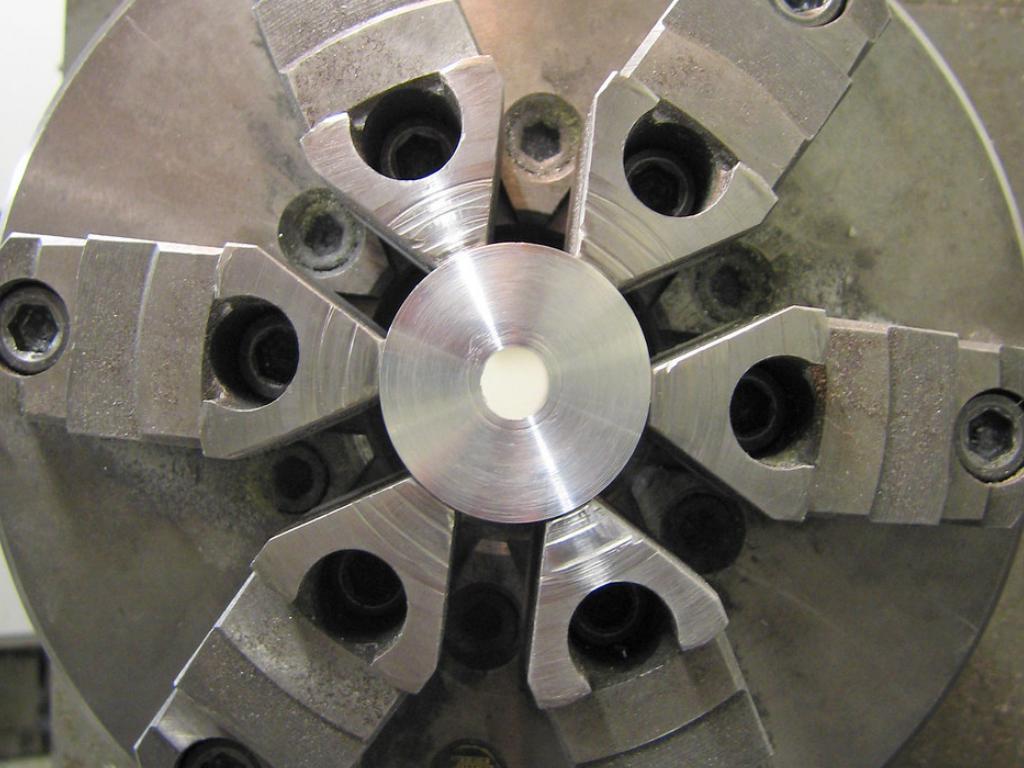

Work piece holding is very important to understand this a very uncommon 6 jaw chuck, normally you'll use a 3 jaw or a collet.
Photo by AMagill

Untitled Slide

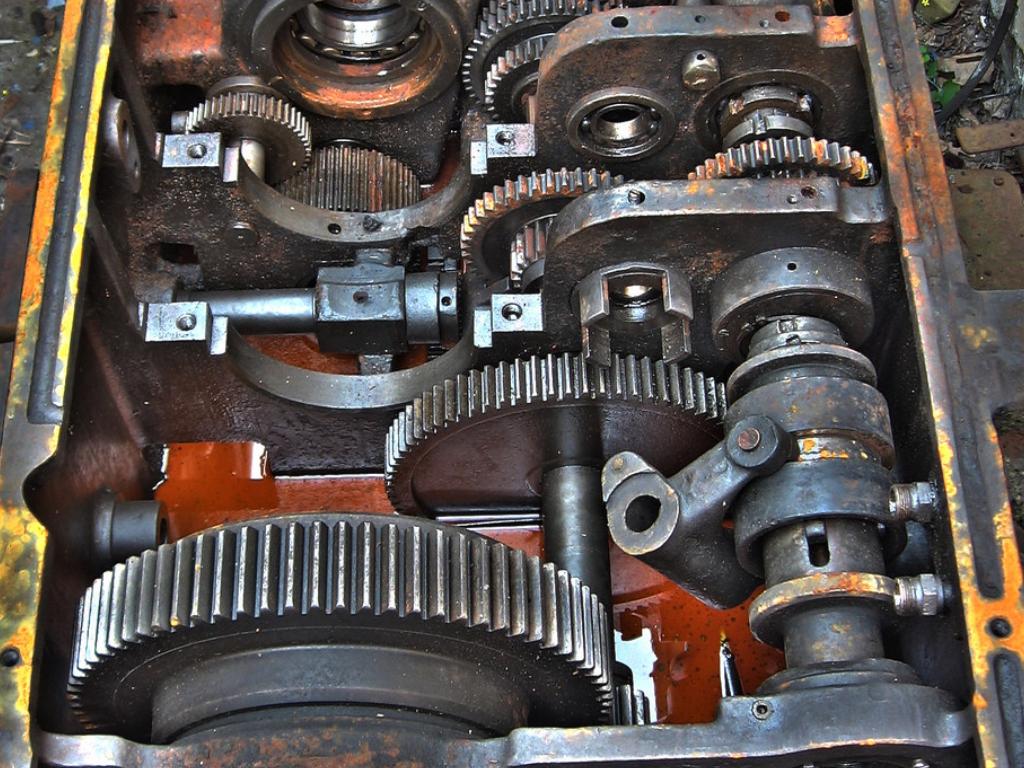

Understanding Speeds and Feeds is very important and basic step to using a lathe or any machine for that matter.

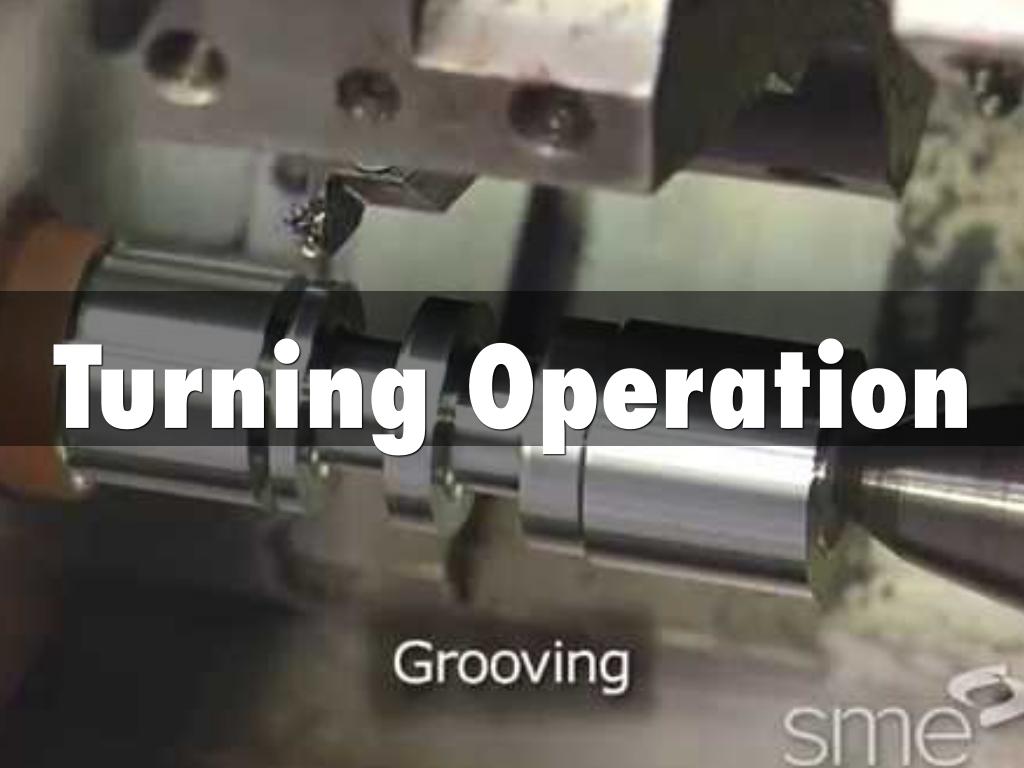

Turning Operation

Here is a short video about turning operations done on a lathe.

Link to Video: https://www.youtube.com/watch?v=8EsAxOnzEms

Untitled Slide

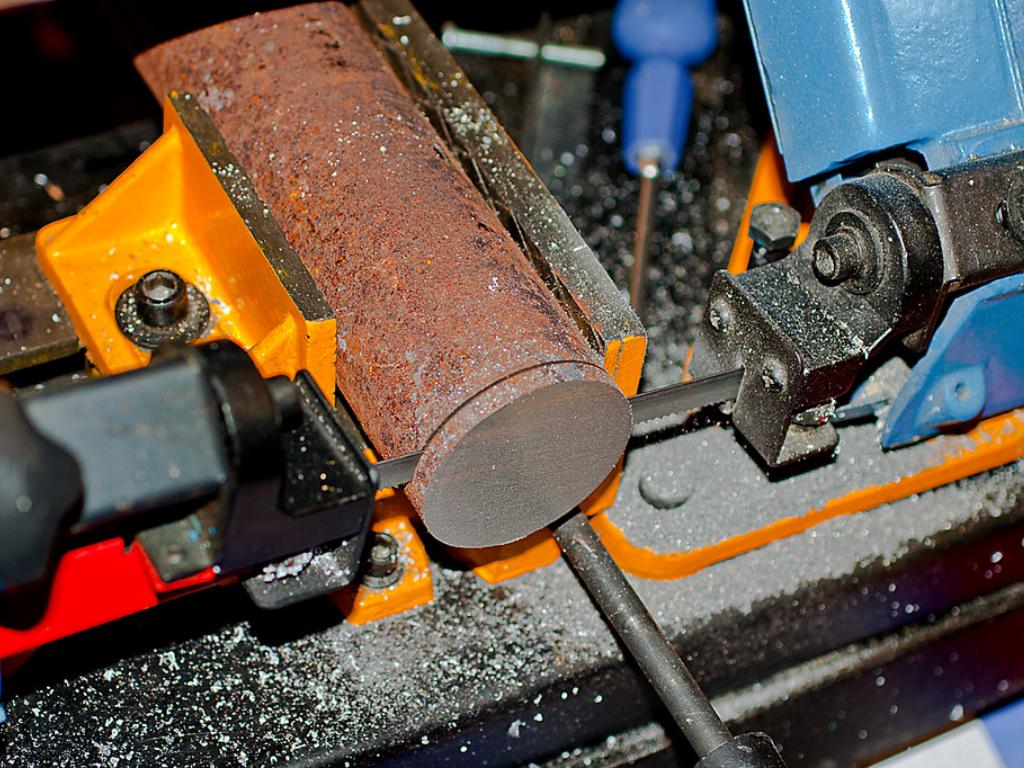

Cutting material to length is often done on a horizontal band saw, that is what this graphic shows.
Photo by tudedude

Untitled Slide

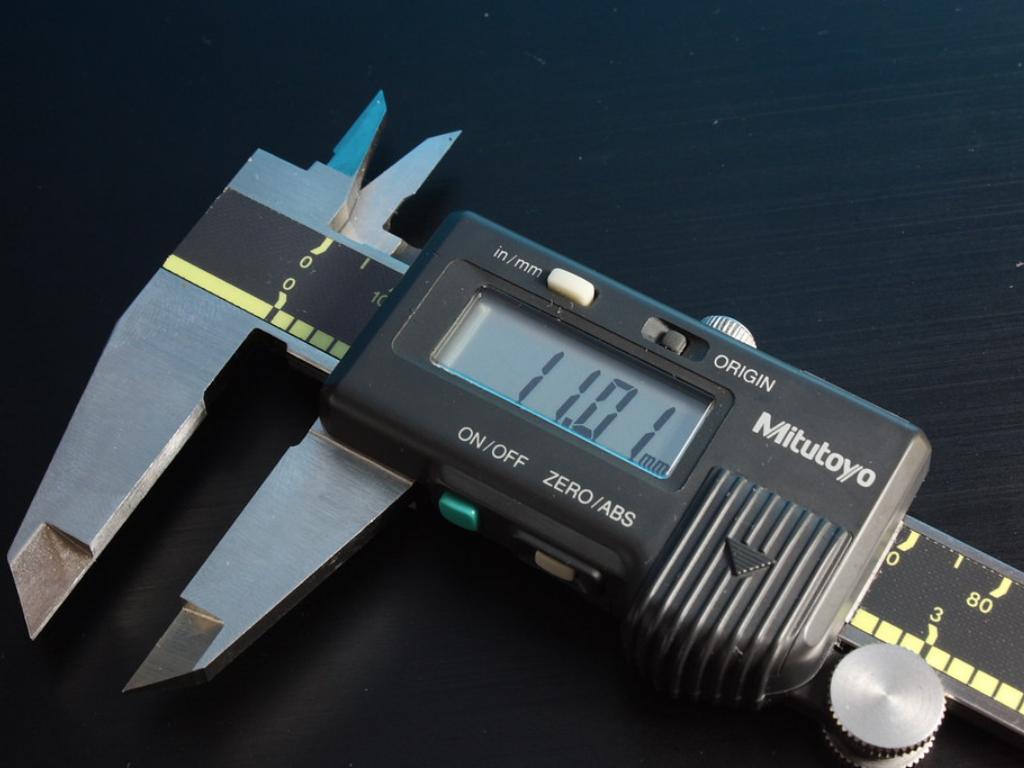

Inspection could very well be the most important aspect of precision machining. Accuracy is key.
