Lighting The Pilot Light

Published on Nov 23, 2015

No Description

View Outline

MORE DECKS TO EXPLORE

PRESENTATION OUTLINE

1.

Turn this knob to OFF

Make sure you leave it OFF for 5 min. before lighting.
2.

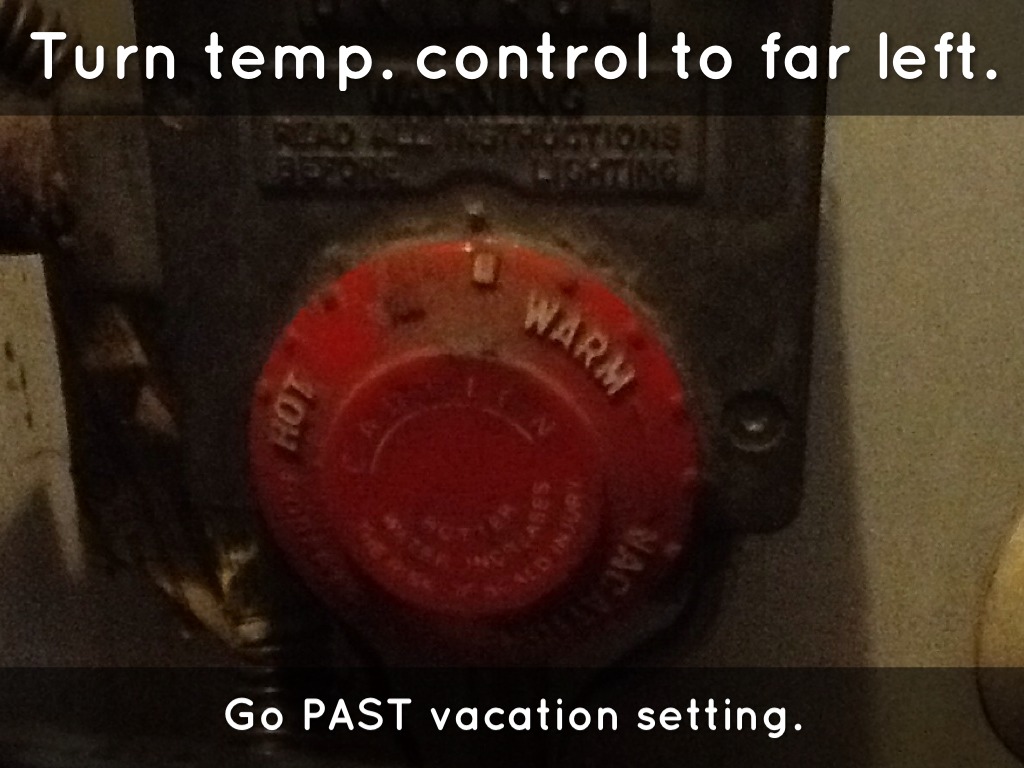

Turn temp. control to far left.

Go PAST vacation setting.
3.

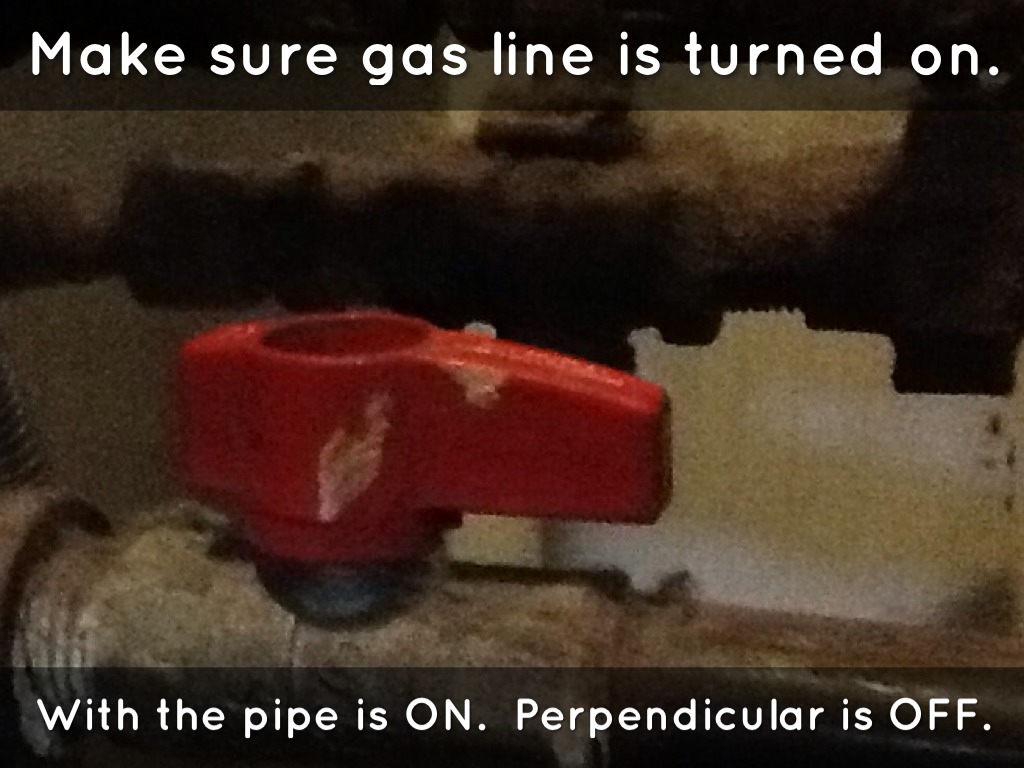

Make sure gas line is turned on.

With the pipe is ON. Perpendicular is OFF.
4.

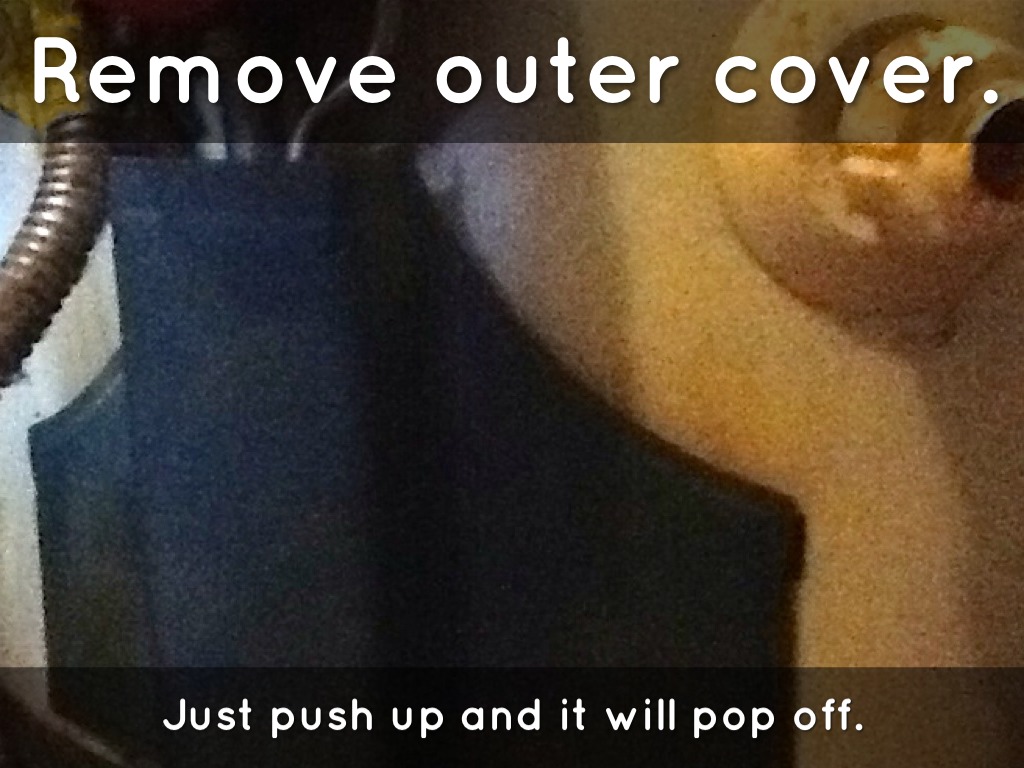

Remove outer cover.

Just push up and it will pop off.
5.

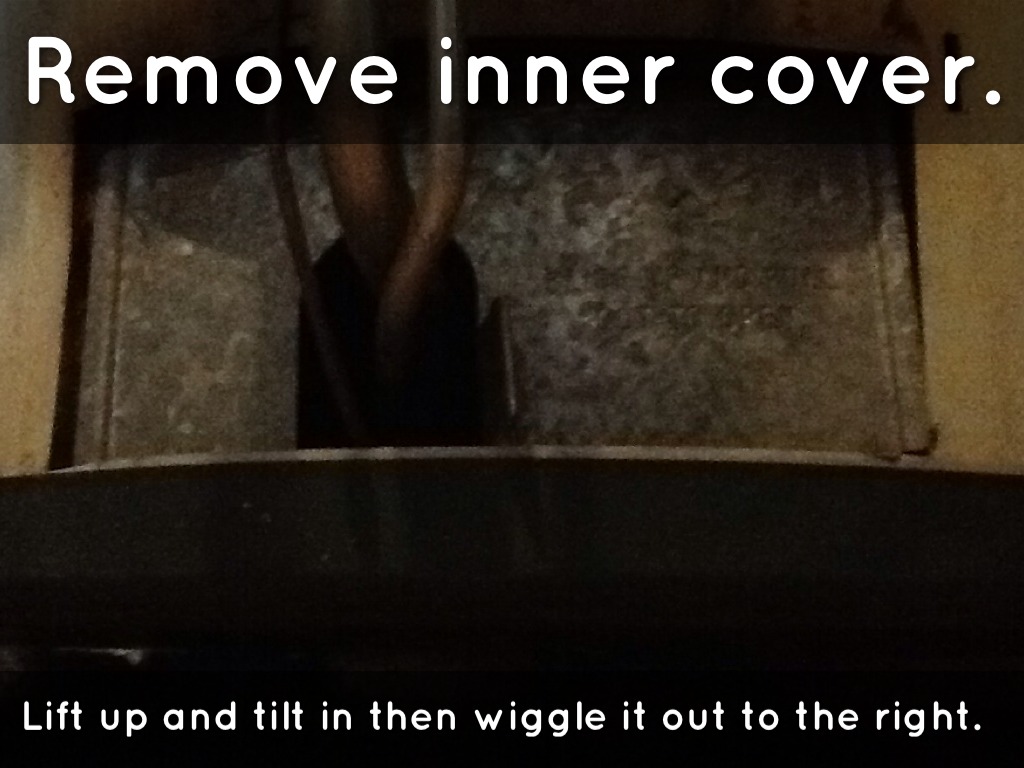

Remove inner cover.

Lift up and tilt in then wiggle it out to the right.
6.

Follow the tubes from outside to find where to light.

Just a few inches inside two tubes point up and end.
7.

When you are ready...

8.

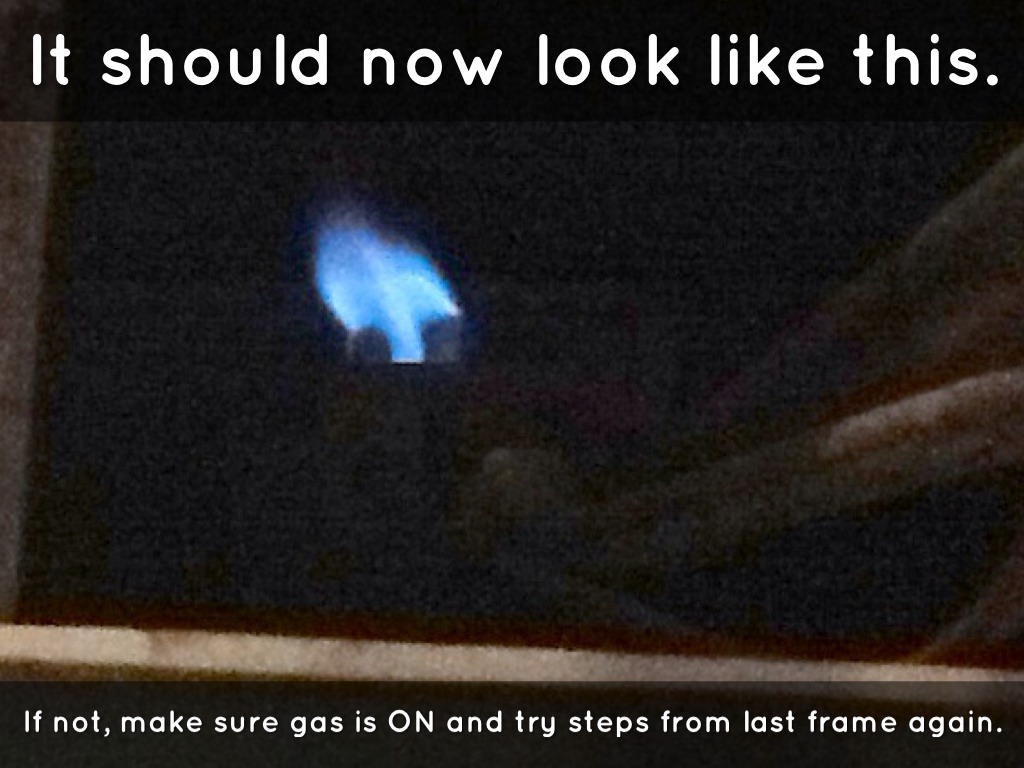

It should now look like this.

If not, make sure gas is ON and try steps from last frame again.
9.

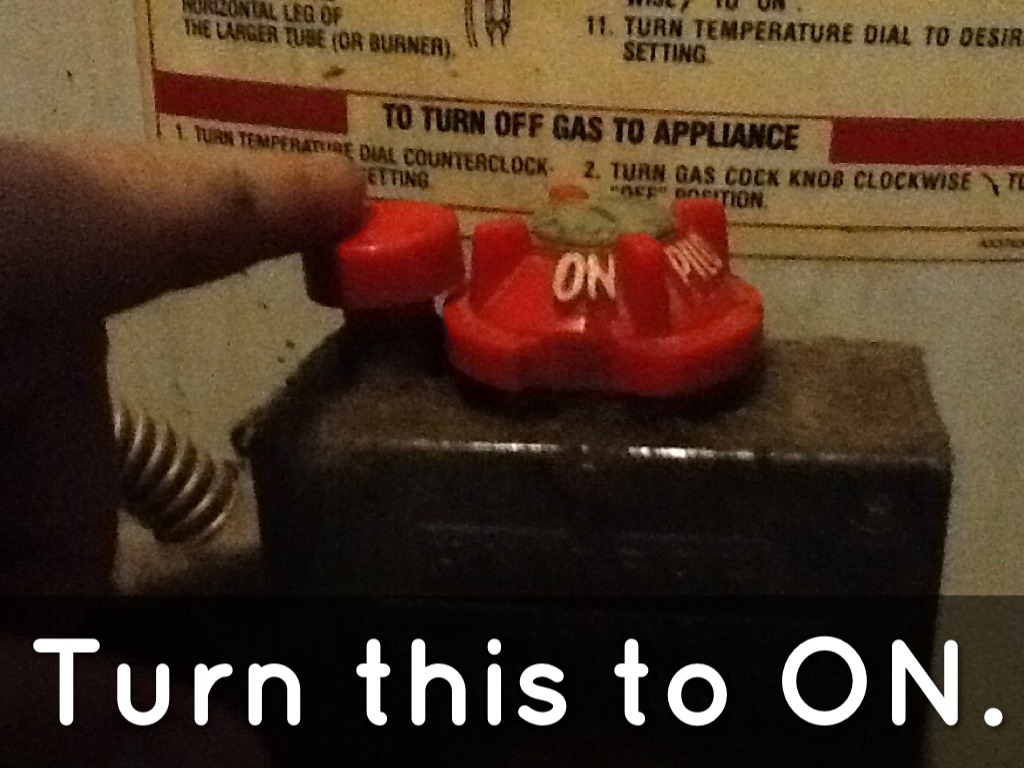

Turn this to ON.

10.

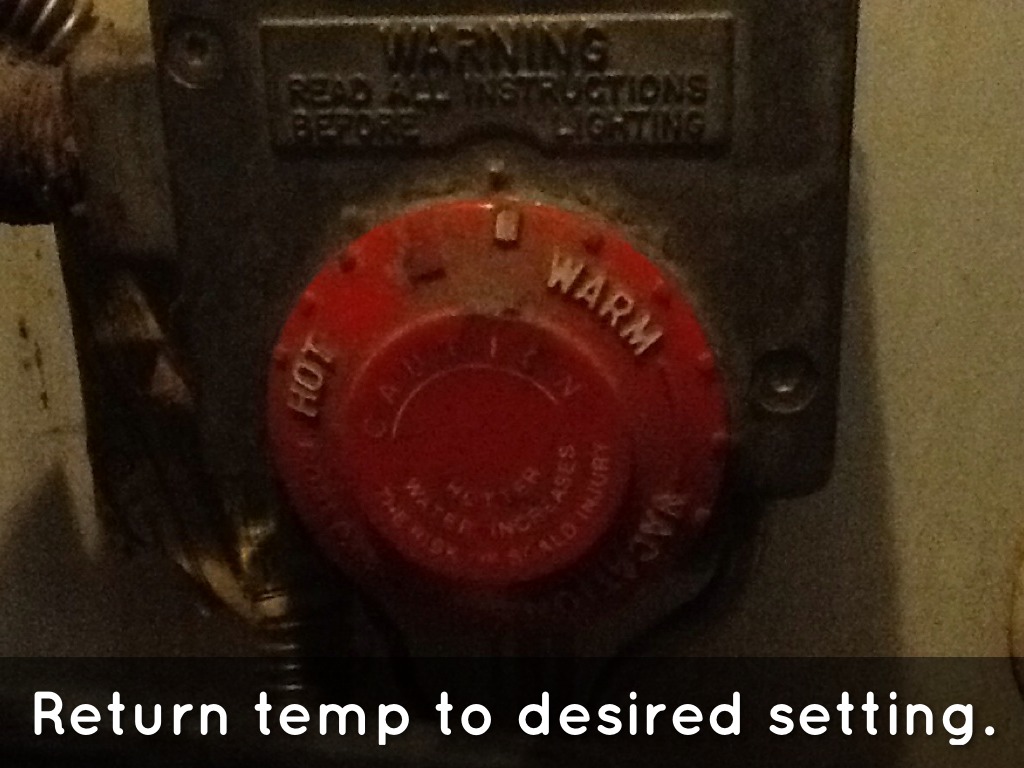

Return temp to desired setting.

11.

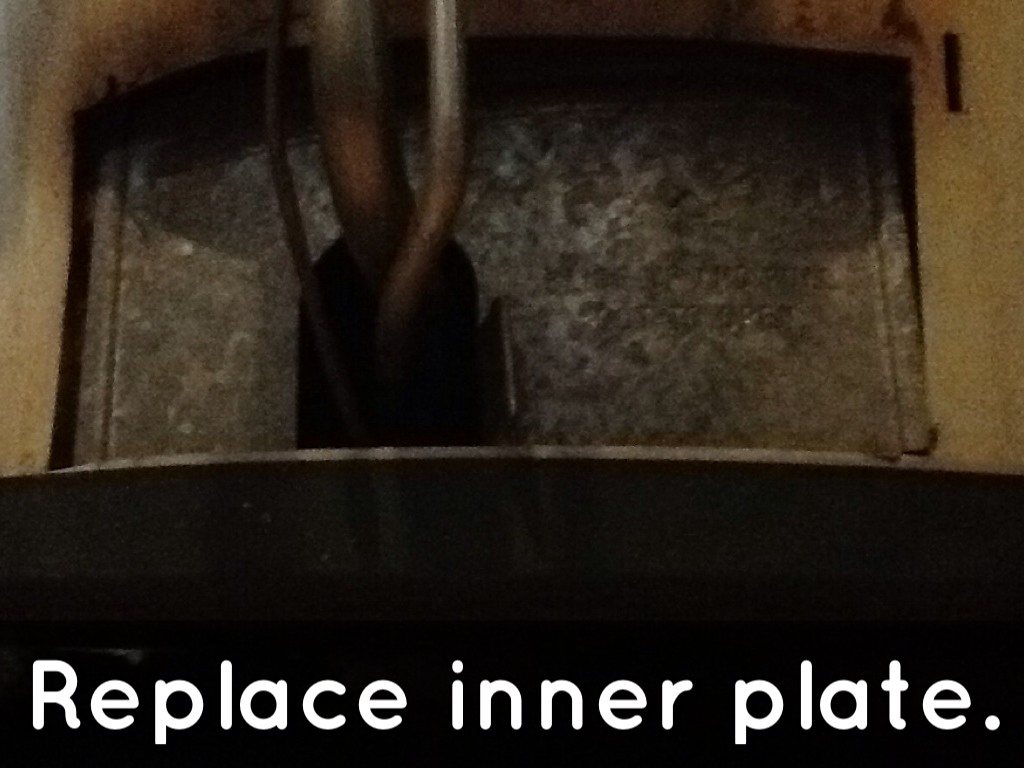

Replace inner plate.

12.

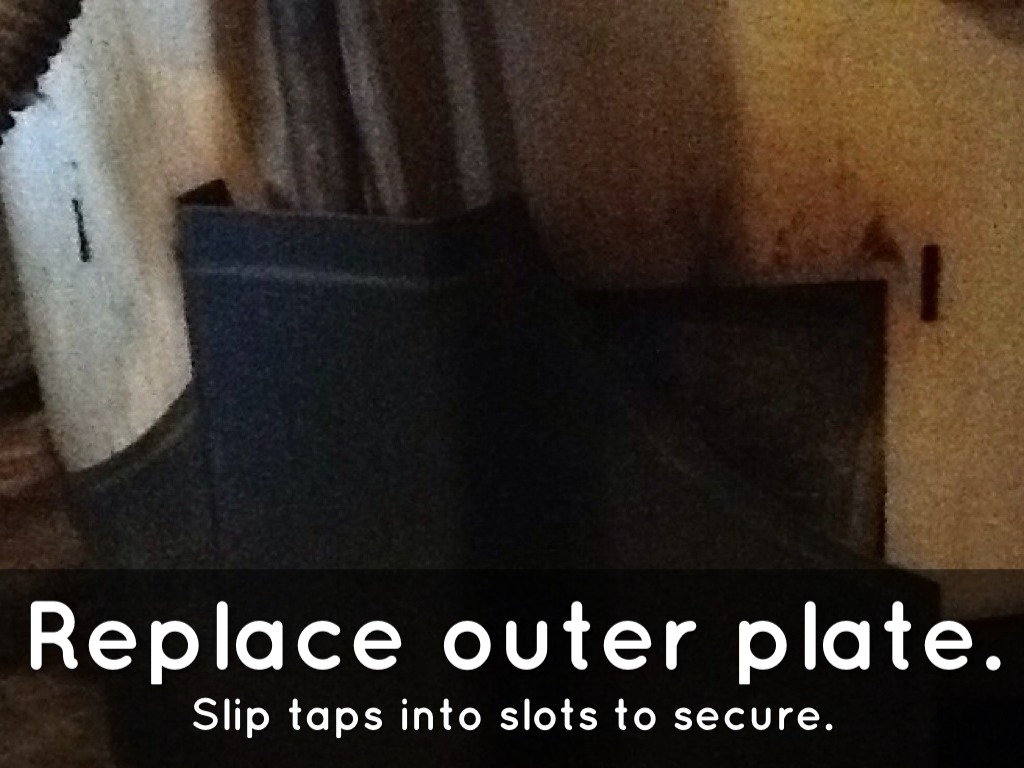

Replace outer plate.

Slip taps into slots to secure.

Michelle Moore
