1.

POPSICLE STICK BRIDGE

BY DAVID CHEN KEYAUNO LA BRADA AND MANUEL GUERRERÓ
2.

MANUEL

THE DESIGNER/BULDER
3.

KEYAUNO

THE BULDER/DIRECTOR
4.

DAVID

LIKE A GOOD NABOR, DAVID IS THERE
5.

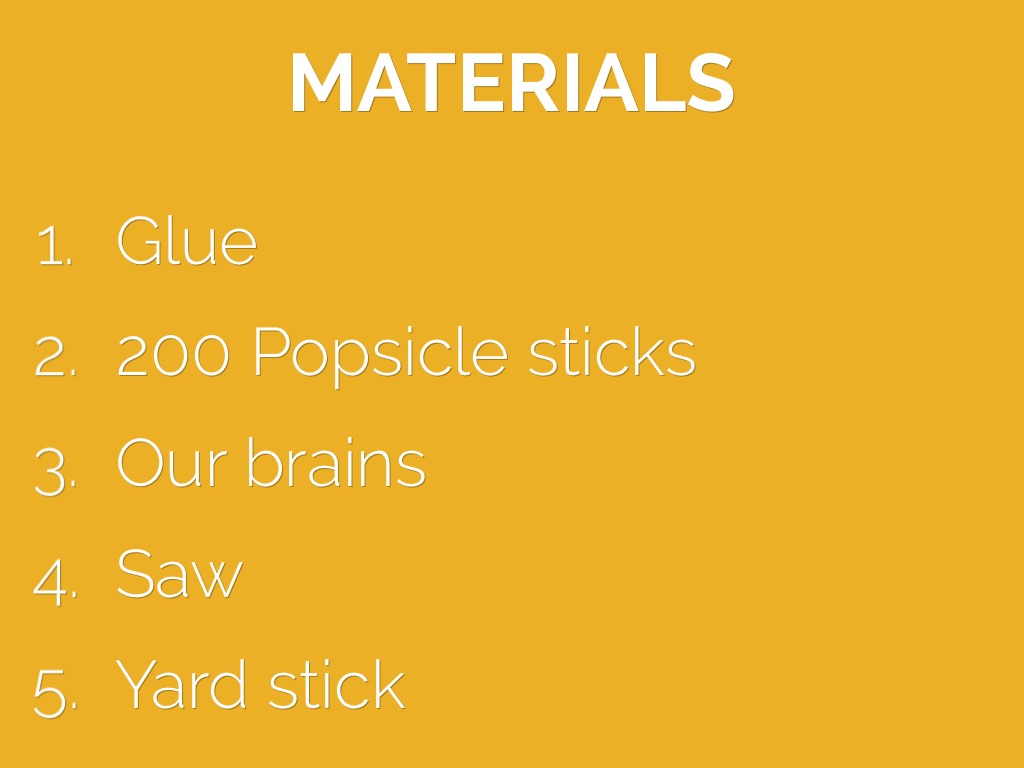

MATERIALS

  • Glue
  • 200 Popsicle sticks
  • Our brains
  • Saw
  • Yard stick
6.

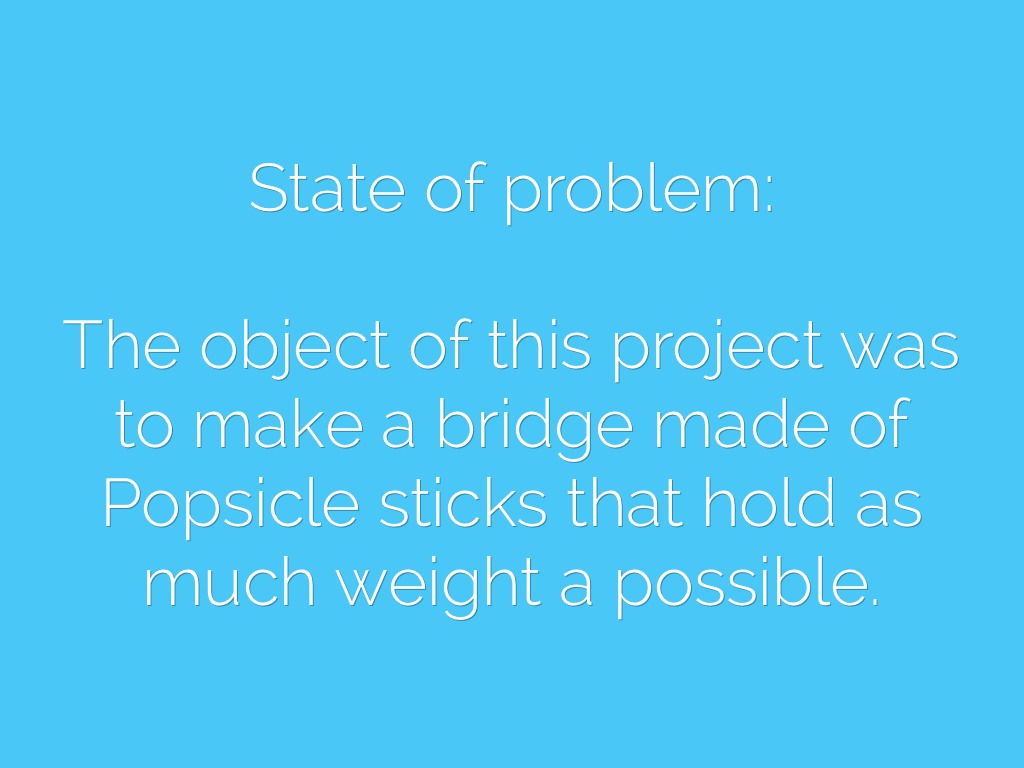

State of problem:

The object of this project was
to make a bridge made of Popsicle sticks that hold as much weight a possible.

7.

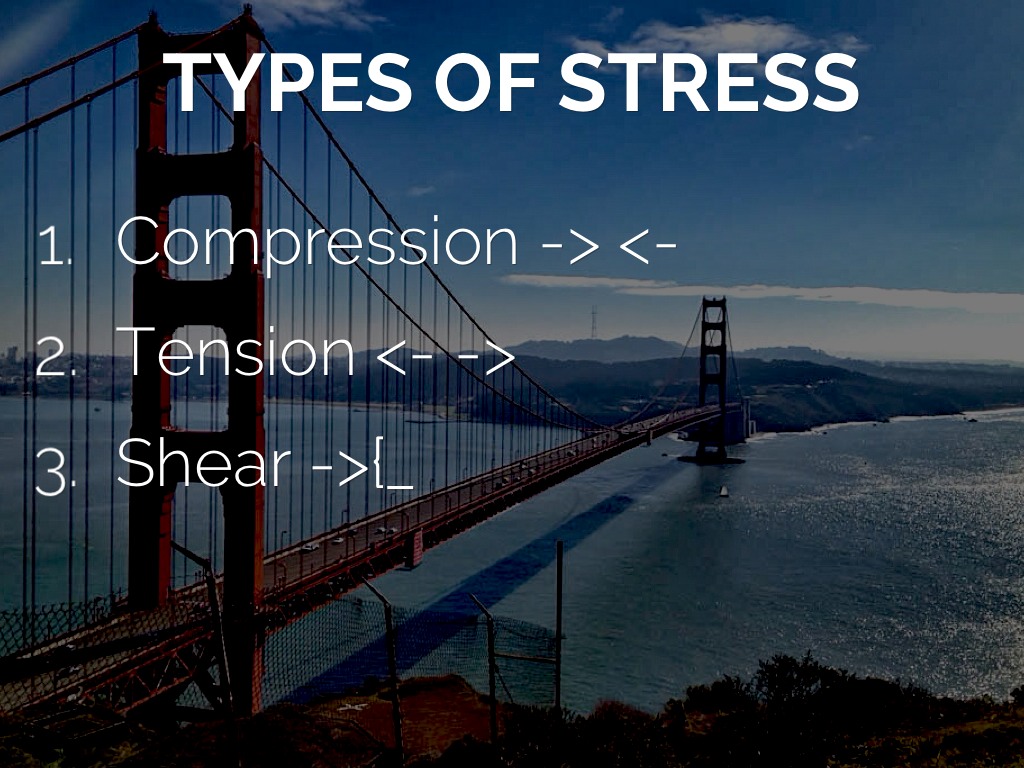

TYPES OF STRESS

  • Compression ->
  • Tension
  • Shear ->{_
Photo by typicalmacuser
8.

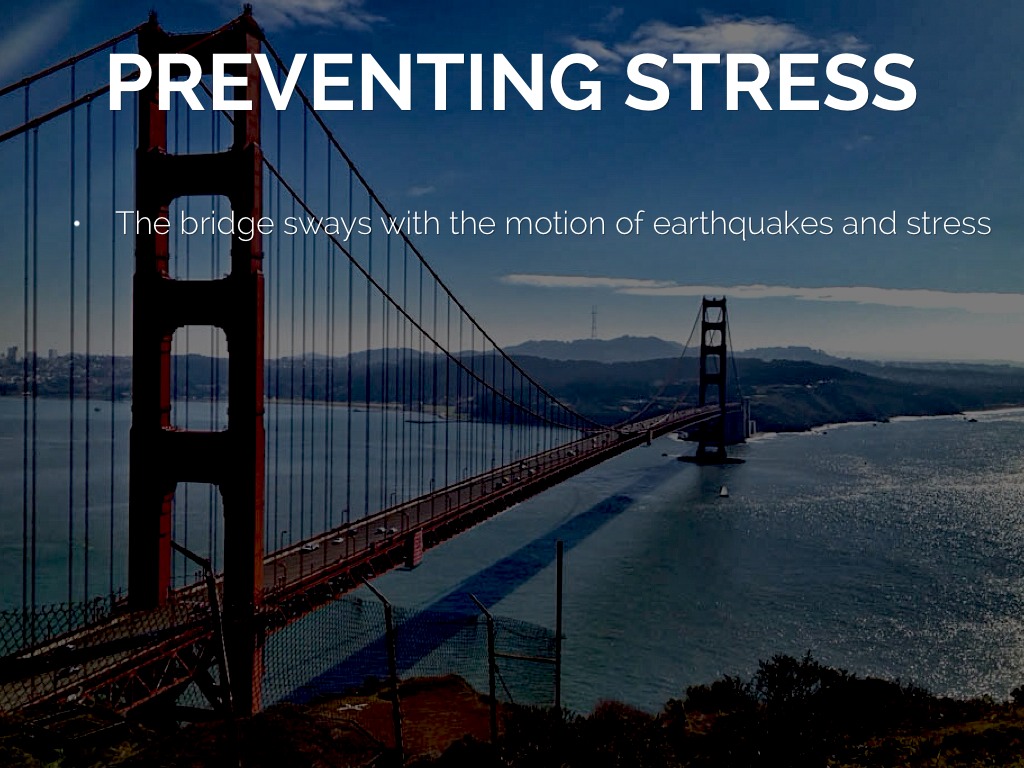

PREVENTING STRESS

  • The bridge sways with the motion of earthquakes and stress
Photo by typicalmacuser
9.

OUR BRIGE HELD NOTHING BECAUSE...

  • It was to flimsy
  • Even though it had 3 layers it was weak on the outside
  • Our bride bridge was to short and weak to support any wieght
